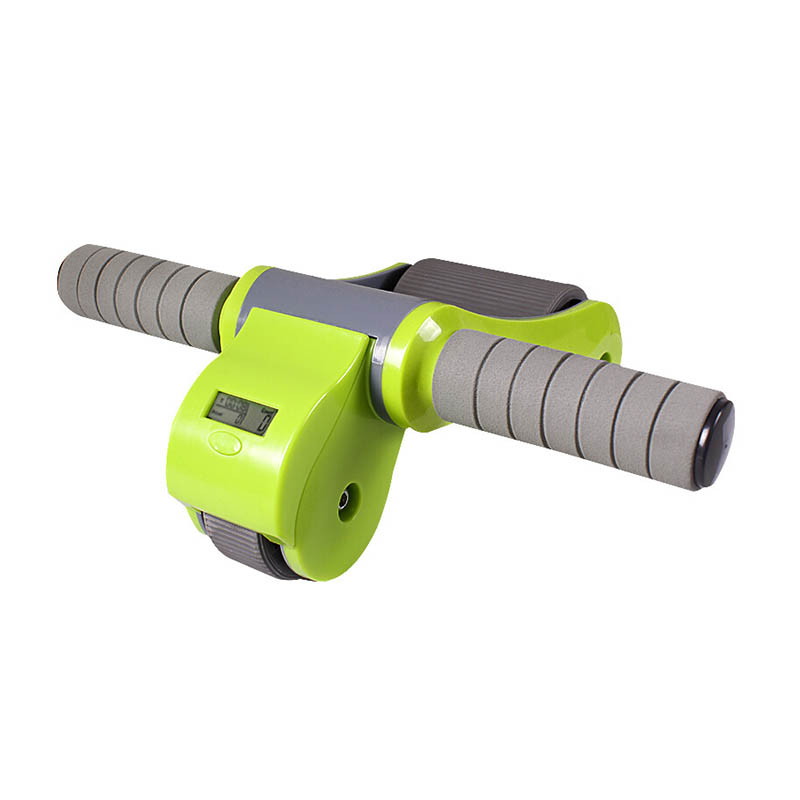

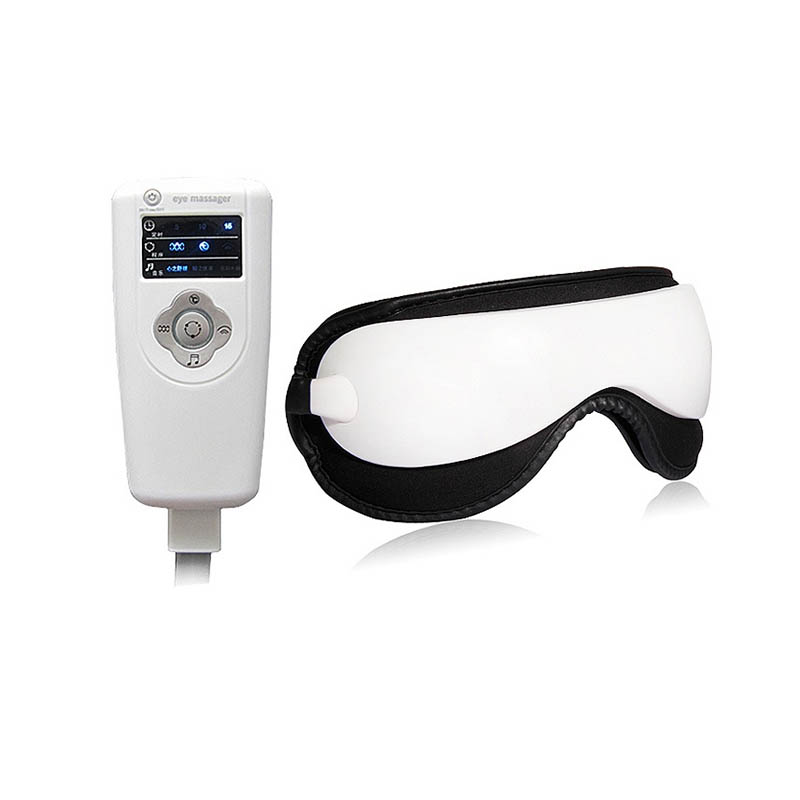

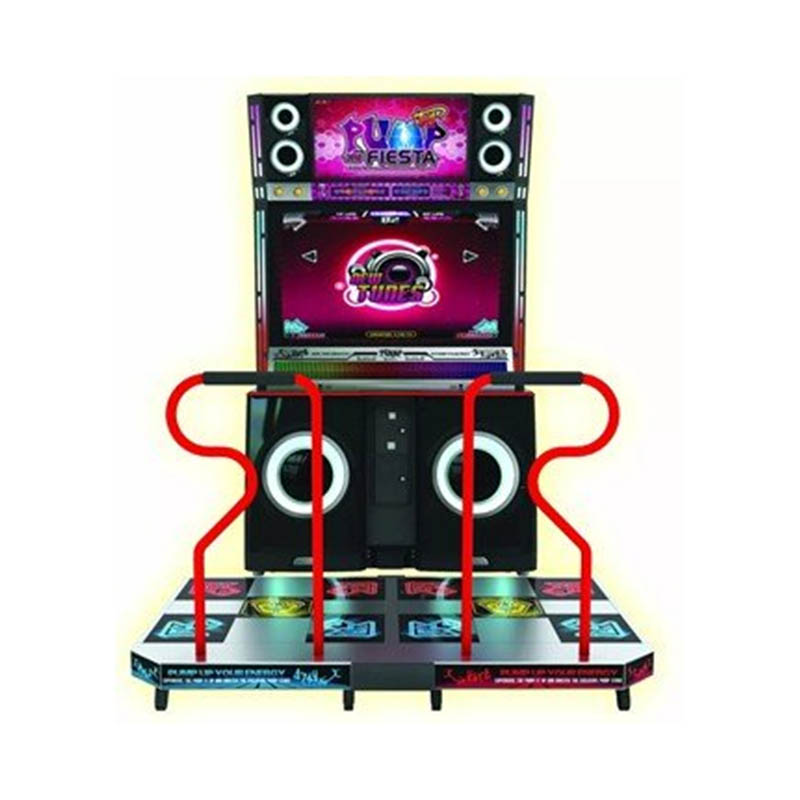

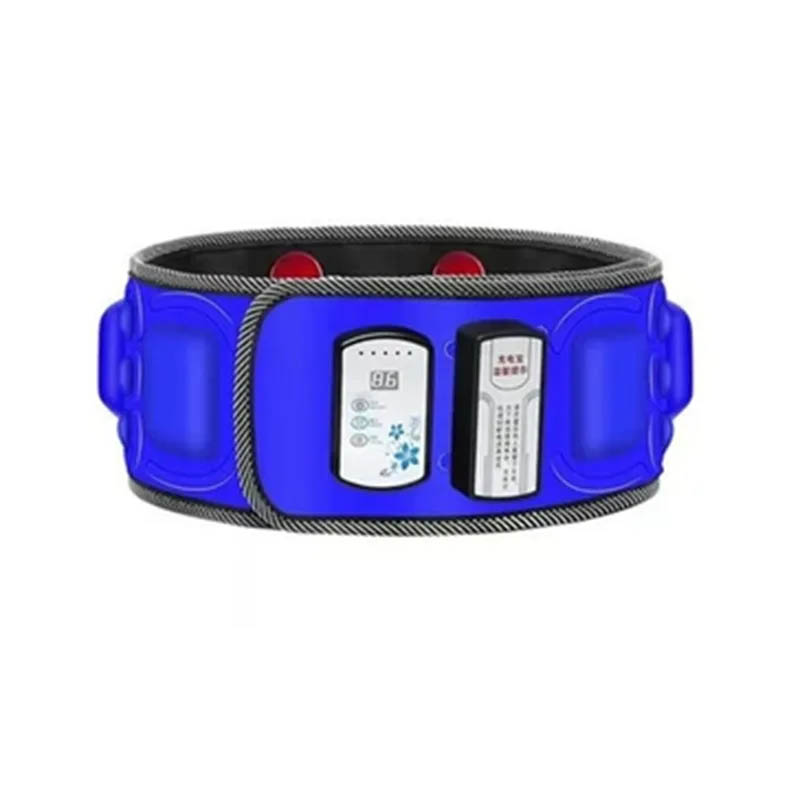

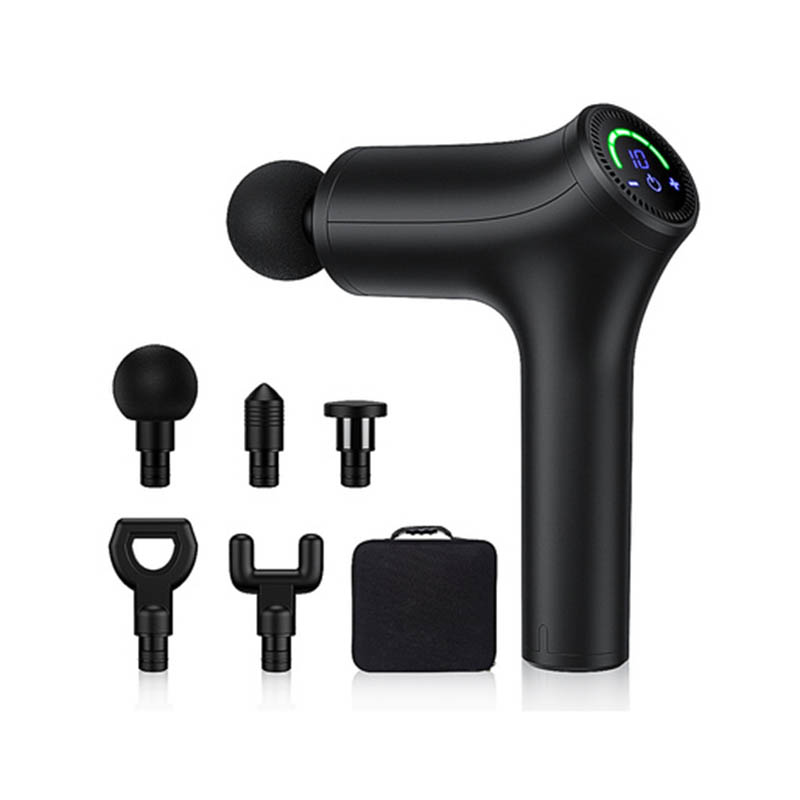

Health appliances-including: treadmill, foot massage, beauty devicer, massage chair, Abdominal Wheel, belt vibrator, neck massager, Eye protection device, fascia gun, knee massager, head massager, waist massager, rowing machine, spinning bike, gravity ball jump rope, electric dumbbell, walking machine, dancing machine.

Health appliances mold

P&M is a mold factory with 23 years of experience in Health appliances mold. We can achieve the desired product effect through injection molds, blow molds, rotational molds, and die-casting molds. At the same time, we have two factories, both of which cover an area of more than 5,000 square meters. We have sufficient equipment and professional engineers to fully meet all customer needs. We can make molds and produce plastic products. We also have a complete supply chain and production line to meet all customer requirements.

In terms of product materials, most of the shells of Health appliances are made of V0-grade flame-retardant ABS material because they need to be in contact with electricity. However, the external shell is also made of PP material because PP material is very durable. For example, the shell of foot massage is made of PP material, and it is non-toxic and harmless. We choose the most suitable material for materials according to the actual function. We have a complete supplier of raw materials. We can provide any material that customers want.

In terms of design, Health appliances require that the parts fit together very well. The perfect fit and assembly between parts have a great impact on the quality of the product. For example, foot massage uses a curved surface design. The lower part of the foot massage shell is tightly matched with the lower parts, making the appearance quality very high. At the same time, different designs are very important for the function of the product. For example, parts such as knee massager will make people very convenient and comfortable to use. The curved surface design combined with the structure of the human hand makes it more convenient for people to use the product. We have unique insights into design and we can meet the curve and surface requirements that customers want.

In terms of mold materials, it depends on the product structure, product quantity and customer budget requirements. If the structure is relatively simple, we can use P20 and 718 mold materials, and the mold life can reach 150,000-300,000 sets. For some complex and special structures, we need to use S136 or H13 mold materials, and the mold life can reach 500,000-100 sets. We will provide the best and most suitable mold material selection, so that customers can use the most suitable budget to make the most satisfactory product effect.

The services we provide are all one-stop services, 1. Product design-2. 3D drawing production-3. CNC sample testing/3D printing testing-4. Mold production-5. Product production-6. Product packaging-7. Product transportation. We are a complete supply chain that can meet the needs of all customers.

Health appliances mold Description

We can fully meet customer requirements

1.automatically.

2. suitable for high speed injection.

3. long mold life.

Mold Cavity： 1 cavity-4cavity-8cavity ,depend on Customer demand

Mold Size: 800x800x980mm，,depend on Customer demand

Suitable Machine: 450T- 1150T

Mold Main Material: P20 718HH H13 S136 2738

Mold Injection System: 1 point spin-point gate

Mold Ejection System: Stripper plate from the injection side

Mold Cycle Time: 15- 30 Seconds

Mold Running: 800K

Delivery Time: 25 working days
